Popis produktu
Product information

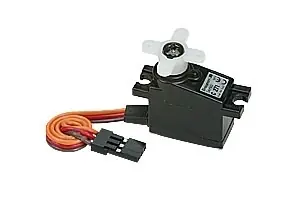

Micro wing-mounting servo designed for the most exacting applications, with precision-machined metal gearbox, metal output gear and metal output shaft. Direct-drive potentiometer, the latest micro-chip technology and a proven electric motor are the outstanding features of this micro wing servo design. The perfect choice as a wing-mounting servo in small high-performance models, for direct aileron linkages, e.g. in mini-F3B and electric-powered model aircraft. Also a good choice for miniature RC model cars, where shock resistance, small size and minimum weight are needed.
Specification
Operating voltage: 4.8 … 6 V
Torque 6.0V approx. 20 Ncm
Transit speed approx. 0.12 s / 40°
Dimensions (L x W x H) approx. 21 x 11 x 21 mm
Weight approx. 13 g
Bearings* PB
Gearbox** MG
* PB –> Plain Bearing –> Gleitlager
BB –> Ball Bearing –> Kugellager
** PG –> Plastic Gearing –> Kunststoffgetriebe
PGCA –> Plastic Gearing Carbonite –> Kunststoffgetriebe Carbonit
MG –> Metal Gearing –> Metallgetriebe
Rounded up to 0.5 mm
| Velikost serva | Micro |
| Typ serva | analogové |
| Tah při 4.8V [kg/cm] | 2 |
| Rychlost při 4.8V [s/60st.] | 0.12 |
| Převody serva | kovové |
| Kuličková ložiska | žádné |
| Highvoltage | ne |
| Napájení [V] | 4.8 – 6 |
| Délka [mm] | 21 |
| Šířka [mm] | 11 |
| Výška [mm] | 21 |
| Hmotnost [g] | 13 |
| Určeno pro | letadla |
